Web-View Integration

Overview

This guide demonstrates how to integrate Amwal Payment Links into your mobile application using web-view for online store transactions. The integration allows customers to complete payments seamlessly within your mobile app without redirecting to external browsers.

Payment Flow

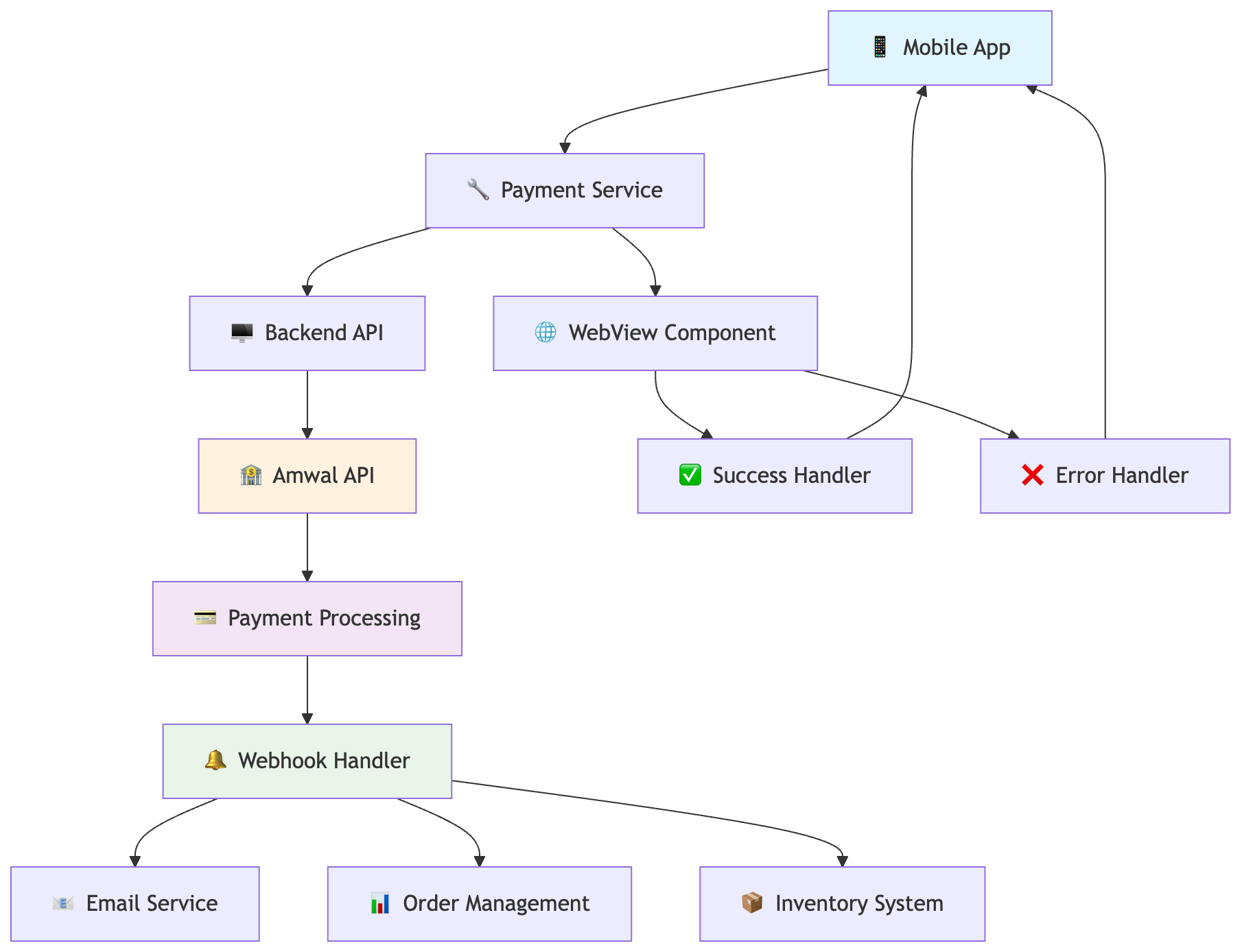

Integration Architecture

Prerequisites

Amwal merchant account with API credentials
Mobile development environment (iOS/Android/React Native)

API Configuration

Base URL

Production: https://backend.sa.amwal.tech

Authentication

Include your API key in the request headers:

Authorization: your_api_key_here

Optional Environment Key

For sandbox testing, include:

X-Amwal-Key: sandbox-amwal-xxx

Step 1: Create Payment Link

API Endpoint

POST /payment_links/{store_id}/create

Request Example

JavaScript/Node.js

const createPaymentLink = async (orderData) => {
    const response = await fetch('https://backend.sa.amwal.tech/payment_links/your_store_id/create', {
        method: 'POST',
        headers: {
            'Content-Type': 'application/json',
            'Authorization': 'your_api_key_here',
            // 'X-Amwal-Key': 'sandbox-amwal-xxx' // For testing
        },
        body: JSON.stringify({
            amount: orderData.amount,
            title: orderData.title,
            description: orderData.description,
            singleUse: true,
            selectedDate: orderData.expiryDate,
            client_phone_number: orderData.customerPhone,
            client_email: orderData.customerEmail,
            client_first_name: orderData.customerFirstName,
            client_last_name: orderData.customerLastName,
            language: 'en', // or 'ar'
            send_sms: false,
            send_receipt_sms: false,
            callback_url: 'https://yourstore.com/webhook/payment-complete',
            metadata: {
                order_id: orderData.orderId,
                customer_id: orderData.customerId,
                platform: 'mobile_app'
            }
        })
    });

    return await response.json();
};

// Usage
const orderData = {
    amount: 299.99,
    title: "Order #12345",
    description: "Premium Headphones - Wireless",
    expiryDate: "2024-12-31T23:59:59Z",
    customerPhone: "+966501234567",
    customerEmail: "[email protected]",
    customerFirstName: "Ahmed",
    customerLastName: "Al-Rashid",
    orderId: "ORD-12345",
    customerId: "CUST-789"
};

createPaymentLink(orderData)
    .then(result => {
        console.log('Payment Link Created:', result.url);
        // Open in web-view
        openPaymentWebView(result.url);
    })
    .catch(error => console.error('Error:', error));

Step 2: Mobile Web-View Integration

iOS (Swift)

import UIKit
import WebKit

class PaymentViewController: UIViewController, WKNavigationDelegate {
    @IBOutlet weak var webView: WKWebView!

    var paymentURL: String?
    var onPaymentComplete: ((Bool, String?) -> Void)?

    override func viewDidLoad() {
        super.viewDidLoad()

        webView.navigationDelegate = self

        // Configure web view for payment
        setupWebView()

        if let urlString = paymentURL, let url = URL(string: urlString) {
            let request = URLRequest(url: url)
            webView.load(request)
        }
    }

    private func setupWebView() {
        // Enable JavaScript
        webView.configuration.preferences.javaScriptEnabled = true

        // Set user agent for mobile optimization
        webView.customUserAgent = "YourAppName/1.0 Mobile"
    }

    // Handle navigation changes
    func webView(_ webView: WKWebView, decidePolicyFor navigationAction: WKNavigationAction, decisionHandler: @escaping (WKNavigationPolicy) -> Void) {

        guard let url = navigationAction.request.url else {
            decisionHandler(.cancel)
            return
        }

        // Check for payment completion redirects
        if url.absoluteString.contains("payment-success") {
            handlePaymentSuccess()
            decisionHandler(.cancel)
            return
        } else if url.absoluteString.contains("payment-failed") {
            handlePaymentFailure("Payment was cancelled or failed")
            decisionHandler(.cancel)
            return
        }

        decisionHandler(.allow)
    }

    private func handlePaymentSuccess() {
        DispatchQueue.main.async {
            self.onPaymentComplete?(true, nil)
            self.dismiss(animated: true)
        }
    }

    private func handlePaymentFailure(_ error: String) {
        DispatchQueue.main.async {
            self.onPaymentComplete?(false, error)
            self.dismiss(animated: true)
        }
    }
}

// Usage in your main view controller
func openPaymentWebView(paymentURL: String) {
    let storyboard = UIStoryboard(name: "Main", bundle: nil)
    if let paymentVC = storyboard.instantiateViewController(withIdentifier: "PaymentViewController") as? PaymentViewController {

        paymentVC.paymentURL = paymentURL
        paymentVC.onPaymentComplete = { [weak self] success, error in
            if success {
                self?.showAlert(title: "Payment Successful", message: "Your order has been processed!")
                // Refresh order status
                self?.refreshOrderStatus()
            } else {
                self?.showAlert(title: "Payment Failed", message: error ?? "Unknown error occurred")
            }
        }

        present(paymentVC, animated: true)
    }
}

Android (Java)

import android.webkit.WebView;
import android.webkit.WebViewClient;
import android.webkit.WebSettings;

public class PaymentActivity extends AppCompatActivity {
    private WebView webView;
    private String paymentURL;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_payment);

        webView = findViewById(R.id.payment_webview);
        paymentURL = getIntent().getStringExtra("payment_url");

        setupWebView();
        loadPaymentURL();
    }

    private void setupWebView() {
        WebSettings webSettings = webView.getSettings();
        webSettings.setJavaScriptEnabled(true);
        webSettings.setDomStorageEnabled(true);
        webSettings.setUserAgentString("YourAppName/1.0 Mobile");

        webView.setWebViewClient(new WebViewClient() {
            @Override
            public boolean shouldOverrideUrlLoading(WebView view, String url) {
                // Handle payment completion
                if (url.contains("payment-success")) {
                    handlePaymentSuccess();
                    return true;
                } else if (url.contains("payment-failed")) {
                    handlePaymentFailure("Payment was cancelled or failed");
                    return true;
                }
                return false;
            }

            @Override
            public void onPageFinished(WebView view, String url) {
                super.onPageFinished(view, url);
                // Hide loading indicator
            }
        });
    }

    private void loadPaymentURL() {
        if (paymentURL != null) {
            webView.loadUrl(paymentURL);
        }
    }

    private void handlePaymentSuccess() {
        runOnUiThread(() -> {
            // Show success message
            Toast.makeText(this, "Payment successful!", Toast.LENGTH_LONG).show();

            // Return success result
            Intent resultIntent = new Intent();
            resultIntent.putExtra("payment_status", "success");
            setResult(RESULT_OK, resultIntent);
            finish();
        });
    }

    private void handlePaymentFailure(String error) {
        runOnUiThread(() -> {
            // Show error message
            Toast.makeText(this, "Payment failed: " + error, Toast.LENGTH_LONG).show();

            // Return failure result
            Intent resultIntent = new Intent();
            resultIntent.putExtra("payment_status", "failed");
            resultIntent.putExtra("error", error);
            setResult(RESULT_CANCELED, resultIntent);
            finish();
        });
    }
}

// Usage in your main activity
private void openPaymentWebView(String paymentURL) {
    Intent intent = new Intent(this, PaymentActivity.class);
    intent.putExtra("payment_url", paymentURL);
    startActivityForResult(intent, PAYMENT_REQUEST_CODE);
}

@Override
protected void onActivityResult(int requestCode, int resultCode, Intent data) {
    super.onActivityResult(requestCode, resultCode, data);

    if (requestCode == PAYMENT_REQUEST_CODE) {
        if (resultCode == RESULT_OK) {
            String status = data.getStringExtra("payment_status");
            if ("success".equals(status)) {
                // Handle successful payment
                showSuccessDialog();
                refreshOrderStatus();
            }
        } else {
            String error = data.getStringExtra("error");
            // Handle payment failure
            showErrorDialog(error);
        }
    }
}

React Native

import React, { useRef } from 'react';
import { WebView } from 'react-native-webview';
import { View, Alert, StyleSheet } from 'react-native';

const PaymentWebView = ({ paymentURL, onPaymentComplete, onPaymentError }) => {
  const webViewRef = useRef(null);

  const handleNavigationStateChange = (navState) => {
    const { url } = navState;

    // Check for payment completion URLs
    if (url.includes('payment-success')) {
      onPaymentComplete();
      return;
    } else if (url.includes('payment-failed') || url.includes('payment-cancelled')) {
      onPaymentError('Payment was cancelled or failed');
      return;
    }
  };

  const handleError = (syntheticEvent) => {
    const { nativeEvent } = syntheticEvent;
    onPaymentError(`WebView error: ${nativeEvent.description}`);
  };

  const injectedJavaScript = `
    // Optional: Inject custom JavaScript for enhanced mobile experience
    (function() {
      // Add mobile-specific styling or behavior
      const meta = document.createElement('meta');
      meta.name = 'viewport';
      meta.content = 'width=device-width, initial-scale=1.0, maximum-scale=1.0, user-scalable=0';
      document.getElementsByTagName('head')[0].appendChild(meta);
    })();
    true; // Required for iOS
  `;

  return (
    <View style={styles.container}>
      <WebView
        ref={webViewRef}
        source={{ uri: paymentURL }}
        style={styles.webView}
        onNavigationStateChange={handleNavigationStateChange}
        onError={handleError}
        javaScriptEnabled={true}
        domStorageEnabled={true}
        startInLoadingState={true}
        userAgent="YourAppName/1.0 Mobile"
        injectedJavaScript={injectedJavaScript}
        onShouldStartLoadWithRequest={(request) => {
          // Allow all requests by default
          return true;
        }}
      />
    </View>
  );
};

const styles = StyleSheet.create({
  container: {
    flex: 1,
  },
  webView: {
    flex: 1,
  },
});

// Usage in your component
const CheckoutScreen = () => {
  const [paymentURL, setPaymentURL] = useState(null);

  const createPaymentLink = async (orderData) => {
    try {
      const response = await fetch('https://backend.sa.amwal.tech/payment_links/your_store_id/create', {
        method: 'POST',
        headers: {
          'Content-Type': 'application/json',
          'Authorization': 'your_api_key_here',
        },
        body: JSON.stringify({
          amount: orderData.amount,
          title: orderData.title,
          description: orderData.description,
          singleUse: true,
          client_email: orderData.customerEmail,
          client_first_name: orderData.customerFirstName,
          language: 'en',
          send_sms: true,
          callback_url: 'https://yourstore.com/webhook/payment-complete',
          metadata: {
            order_id: orderData.orderId,
            platform: 'mobile_app'
          }
        })
      });

      const result = await response.json();
      setPaymentURL(result.url);
    } catch (error) {
      Alert.alert('Error', 'Failed to create payment link');
    }
  };

  const handlePaymentComplete = () => {
    Alert.alert('Success', 'Payment completed successfully!', [
      {
        text: 'OK',
        onPress: () => {
          setPaymentURL(null);
          // Navigate to success screen or refresh orders
        }
      }
    ]);
  };

  const handlePaymentError = (error) => {
    Alert.alert('Payment Failed', error, [
      {
        text: 'OK',
        onPress: () => setPaymentURL(null)
      }
    ]);
  };

  if (paymentURL) {
    return (
      <PaymentWebView
        paymentURL={paymentURL}
        onPaymentComplete={handlePaymentComplete}
        onPaymentError={handlePaymentError}
      />
    );
  }

  // Your regular checkout UI here
  return (
    <View>
      {/* Your checkout form */}
    </View>
  );
};

export default CheckoutScreen;

Step 3: Handle Payment Completion

Webhook Setup

Set up a webhook endpoint to receive payment notifications and verify status:

// Express.js webhook handler
app.get('/webhook/payment-complete', async (req, res) => {
    const { transaction_id, reference_number } = req.query;

    if (!transaction_id) {
        return res.status(400).send('Missing transaction_id');
    }

    try {
        // Get payment details using the transaction_id
        const paymentDetails = await getPaymentDetails(transaction_id);

        if (paymentDetails && paymentDetails.payment_link.status === 'Paid') {
            // Extract order information from metadata
            const metadata = paymentDetails.payment_link.metadata || {};

            // Update order status in database
            if (metadata.order_id) {
                await updateOrderStatus(metadata.order_id, 'paid');
            }

            // Send confirmation email
            if (metadata.customer_id) {
                await sendOrderConfirmation(metadata.customer_id);
            }

            // Update inventory
            if (metadata.order_id) {
                await updateInventory(metadata.order_id);
            }

            console.log(`Payment completed for transaction: ${transaction_id}`);
        }

        res.status(200).send('OK');
    } catch (error) {
        console.error('Webhook processing error:', error);
        res.status(500).send('Internal Server Error');
    }
});

// Function to get payment details using transaction_id
const getPaymentDetails = async (transactionId) => {
    // Note: You'll need to map transaction_id to payment_link_id
    // This might require storing the relationship when creating payment links
    // or using a different endpoint that accepts transaction_id

    const response = await fetch(`https://backend.sa.amwal.tech/payment_links/${paymentLinkId}/details`, {
        method: 'POST',
        headers: {
            'Authorization': 'your_api_key_here',
            'Accept': 'application/json',
            'Content-Type': 'application/json',
            'X-Amwal-Key': 'sandbox-amwal-xxx' // For sandbox testing
        },
        body: JSON.stringify({})
    });

    return await response.json();
};

Alternative: Store Transaction Mapping

Since the webhook provides transaction_id but the API needs payment_link_id, store this mapping when creating payment links:

// When creating payment link, store the mapping
const createPaymentLink = async (orderData) => {
    const response = await fetch('https://backend.sa.amwal.tech/payment_links/your_store_id/create', {
        // ... headers and body
    });

    const result = await response.json();

    if (response.ok) {
        // Store the mapping for webhook processing
        await storePaymentMapping({
            order_id: orderData.orderId,
            payment_link_id: result.payment_link_id,
            payment_url: result.url,
            created_at: new Date()
        });

        return result;
    }
};

// Updated webhook handler with mapping lookup
app.get('/webhook/payment-complete', async (req, res) => {
    const { transaction_id, reference_number } = req.query;

    try {
        // Find the payment link associated with this transaction
        // You might need to search through recent transactions
        const paymentMapping = await findPaymentByTransaction(transaction_id);

        if (paymentMapping) {
            const paymentDetails = await getPaymentDetailsByLinkId(paymentMapping.payment_link_id);

            if (paymentDetails.payment_link.status === 'Paid') {
                // Process successful payment
                await processSuccessfulPayment(paymentMapping.order_id, transaction_id);
            }
        }

        res.status(200).send('OK');
    } catch (error) {
        console.error('Webhook error:', error);
        res.status(500).send('Error');
    }
});

Verify Payment Status

Always verify payment status server-side using the payment link ID:

const verifyPaymentStatus = async (paymentLinkId) => {
    const response = await fetch(`https://backend.sa.amwal.tech/payment_links/${paymentLinkId}/details`, {
        method: 'POST',
        headers: {
            'Authorization': 'your_api_key_here',
            'Accept': 'application/json',
            'Content-Type': 'application/json',
            'X-Amwal-Key': 'sandbox-amwal-xxx' // For sandbox
        },
        body: JSON.stringify({})
    });

    const data = await response.json();
    return data.payment_link.status === 'Paid';
};

Step 4: Error Handling

Common Scenarios

const handlePaymentErrors = (error) => {
    switch (error.error_code) {
        case 'LINK_EXPIRED':
            // Create new payment link
            showAlert('Payment link expired. Creating new one...');
            createNewPaymentLink();
            break;

        case 'INVALID_AMOUNT':
            // Handle amount validation
            showAlert('Invalid payment amount. Please try again.');
            break;

        case 'NETWORK_ERROR':
            // Handle network issues
            showAlert('Network error. Please check your connection.');
            break;

        default:
            showAlert('Payment failed. Please try again.');
    }
};

Best Practices

1. Security

Always validate payments server-side
Implement webhook signature verification
Use HTTPS for all API calls
Store API keys securely (not in client code)

2. User Experience

Show loading indicators during API calls
Handle network timeouts gracefully
Provide clear error messages
Allow users to retry failed payments

3. Testing

Use sandbox environment for development
Test various payment scenarios
Test network connectivity issues
Verify webhook handling

4. Performance

Cache payment links when appropriate
Implement proper timeout handling
Optimize web-view loading
